12 x 16 Frame

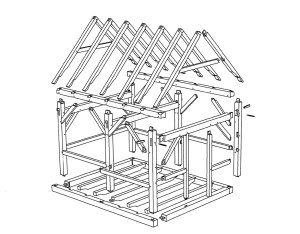

This cute, rugged frame makes a nice garden barn, workshop, studio, or pool house.   Floor joists can be added on  top of the tie beams for a half or full loft.  This style of frame can be expanded up to 16’ x 36’. It also comes with a timber floor system for a plank floor. The door location can vary.  A larger door works well on the long walls.12x16_Exploded_02Apr2014-web

2 – 8’ bays
1’-6” knee wall in loft
192 square feet
12/12 roof pitch
9’-4” eave height
15’-4” ridge height
7’-2” to bottom of tie beam
